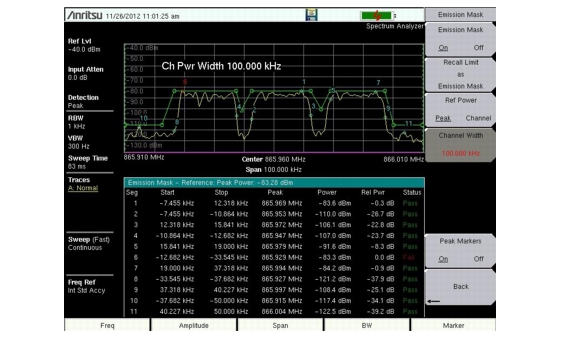

The emission mask is a segmented upper limit line that will display frequency range, peak power and frequency, relative power, and pass/fail status for each segment of the mask. The emission mask must have at least two segments.
|
1.
|
Create or recall a multi‑segment limit line or envelope to use as an emission mask. Refer to Limit Menu for details on the Limit menu.
|
|
2.
|
Press the Shift key followed by the Measure (4) key,. Then press the Masks and C/I submenu key, and then the Emission Mask submenu key.
|
|
3.
|
 |
