IQ Capture Triggering Menu

Spectrum Analyzer Measurement Guide for Anritsu RF and Microwave Handheld Instruments : Spectrum Analyzer : Measure Menu : IQ Capture Triggering Menu

IQ Capture Triggering Menu

Key Sequence: Shift > Measure (4) key > IQ Waveform Capture > Triggering

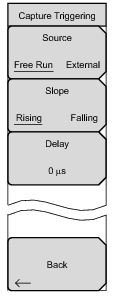

SPA IQ Capture Triggering Menu

Source

Press this submenu key to set the desired type of triggering.

Free Run: The default trigger type is Free Run, in which the instrument begins another sweep as soon as one is finished.

External: A TTL signal applied to the External Trigger BNC input connector causes a single sweep to occur after the set delay. After the sweep is complete, the resultant trace is displayed until the next trigger signal arrives.

Slope

Sets the trigger slope to rising or falling.

Delay

Used when External is selected for the Source. Capture begins after set time delay, once the trigger has occurred. The delay can be entered either as a percentage of the sweep time or as an absolute time delay with units of ns, μs, or ms.

Back

Returns to the IQ Waveform Capture Menu (Option 24).

SPA IQ Capture Triggering Menu
	Source Press this submenu key to set the desired type of triggering. Free Run: The default trigger type is Free Run, in which the instrument begins another sweep as soon as one is finished. External: A TTL signal applied to the External Trigger BNC input connector causes a single sweep to occur after the set delay. After the sweep is complete, the resultant trace is displayed until the next trigger signal arrives. Slope Sets the trigger slope to rising or falling. Delay Used when External is selected for the Source. Capture begins after set time delay, once the trigger has occurred. The delay can be entered either as a percentage of the sweep time or as an absolute time delay with units of ns, μs, or ms. Back Returns to the IQ Waveform Capture Menu (Option 24).
