Trace A Ops Menu

Key Sequence: Shift > Trace (5) key > Trace A Operations

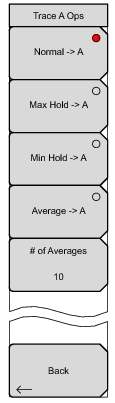

SPA Trace A Ops Menu

Normal -> A

Displays data for the current trace sweep.

Max Hold -> A

Shows the cumulative maximum value of each display point over many trace sweeps.

Min Hold -> A

Shows the cumulative minimum value of each display point over many trace sweeps.

Average -> A

Shows an exponential average of a number of traces, determined by the # of Averages key.

# of Averages

Sets the number of traces for use in calculating the average display value. Then number used for averaging ranges from 1 to 65535.

Back

Returns to the Trace Menu.

SPA Trace A Ops Menu
	Normal -> A Displays data for the current trace sweep. Max Hold -> A Shows the cumulative maximum value of each display point over many trace sweeps. Min Hold -> A Shows the cumulative minimum value of each display point over many trace sweeps. Average -> A Shows an exponential average of a number of traces, determined by the # of Averages key. # of Averages Sets the number of traces for use in calculating the average display value. Then number used for averaging ranges from 1 to 65535. Back Returns to the Trace Menu.
