Trace B Ops Menu

Key Sequence: Shift > Trace (5) key > Trace B Operations

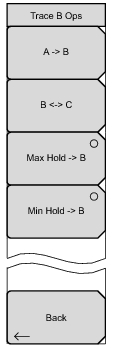

SPA Trace B Ops Menu

A -> B

Copies the contents of Trace A into Trace B. Doing so overwrites the previous contents of Trace B.

B <--> C

Swaps the contents of Traces B and C.

Max Hold -> B

Shows the cumulative maximum value of each display point over many trace sweeps.

Min Hold -> B

Shows the cumulative minimum value of each display point over many trace sweeps.

Back

Returns to the Trace Menu.

SPA Trace B Ops Menu
	A -> B Copies the contents of Trace A into Trace B. Doing so overwrites the previous contents of Trace B. B <--> C Swaps the contents of Traces B and C. Max Hold -> B Shows the cumulative maximum value of each display point over many trace sweeps. Min Hold -> B Shows the cumulative minimum value of each display point over many trace sweeps. Back Returns to the Trace Menu.
