Instrument Overview

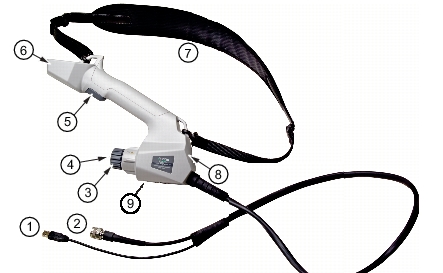

MA2700A Overview

1	USB cable, connect to Anritsu instrument.
2	Coaxial cable with type N male connector. Attach to Anritsu instrument’s RF In port.
3	Coupling nut for antenna connector.
4	Antenna connector (male type N). Connect directional antenna or filter and antenna combination. Refer to Antenna and Filter Selection for additional information.
5	Pulling the MA2700A trigger will prompt the Anritsu analyzer to beep. Releasing the pulled trigger has two functions: • Release the trigger after the initial beep (< 1 second) to capture location and signal data. • Release the trigger after the second beep (~ 2 seconds) to toggle the preamp in the MA2700A and the Anritsu analyzer’s preamp On or Off.
6	Internal electronic compass and GPS receiver.
7	Included shoulder strap.
8	Internal preamplifier.
9	1/4-20 UNC tripod mount.
