The battery information menu shows the available battery information. The relative charge indicates the charge level that the battery is capable of storing. The maximum charge shows the relative capacity of the battery compared to the design capacity. Advanced information can be expanded by touching Advanced.
Battery Information
Event Log

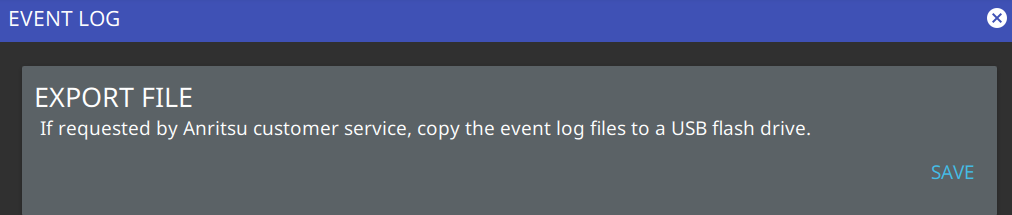

The event log allows you to save the event log as a file. This log file is a binary file that may be used by customer service.
Event Log
Self Test
Self test is run when the self test feature is accessed. Basic system results are shown initially. The individual test result can be displayed with test data and a pass/fail status by touching the desired system or application. The self test results can be saved to a file for future reference. Refer to Instrument Messages and Troubleshooting for more information.
Self Test
Service Mode

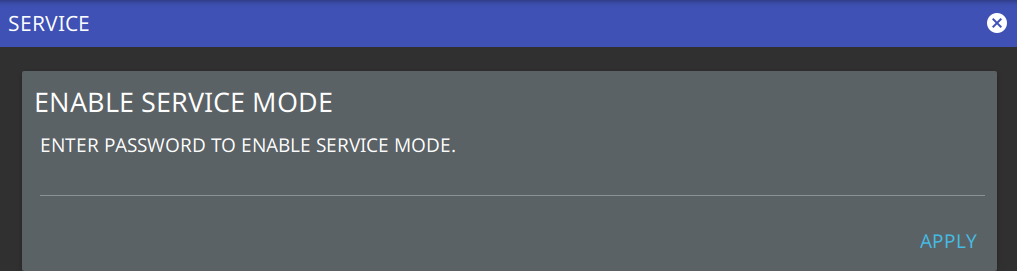

The service mode is for Anritsu customer service use only.
