The IQ STREAMING menu allows you to concatenate an existing IQ metadata file (.dgzm) with a session of IQ data files (.dgz) that were streamed to a USB device after the stream operation is complete. The data files must all come from the same stream session.

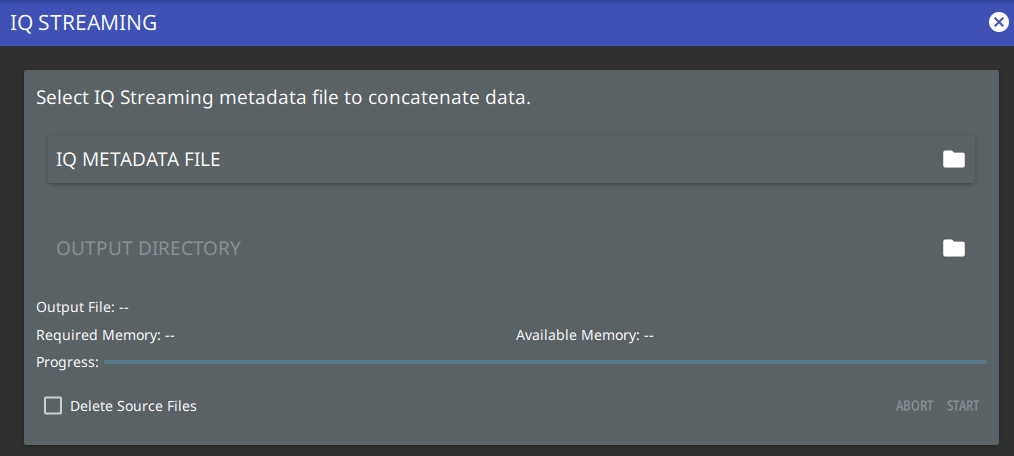

IQ STREAMING Menu
1. Touch IQ METADATA FILE and then select the file that you wish to concatenate with IQ data streams. All of the data stream files in the selected directory will be concatenated with the metadata file.
2. Touch the OUTPUT DIRECTORY and select the destination for the concatenated files. If desired, select Delete Source Files.
3. Press Start to begin the concatenation. The progress bar will indicate relative progress.
Note
Concatenating files can be time consuming depending on the streaming parameters and time. The process can be much faster if performed on a PC using the MS2090A PC application. Refer to MS2090A PC Software for details on using this application.
